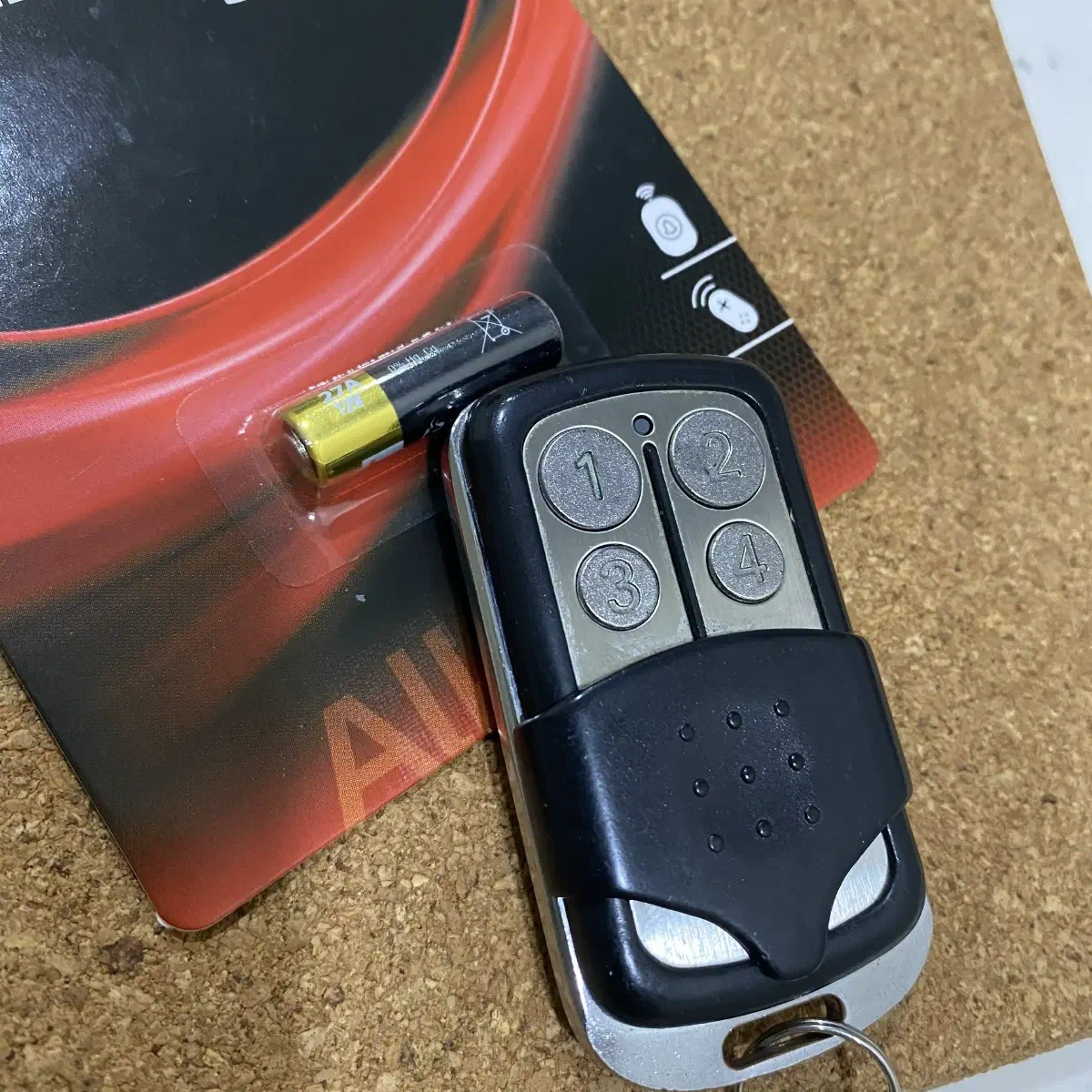

Replace My Auto Gate Remote Control Battery
  1. Posts/

Replace My Auto Gate Remote Control Battery

·292 words·2 mins
Juan
Author
Juan
Writing about DIY, home automation, smart home, Arduino, coding, and home improvement projects with step-by-step guides and tutorials.

One day, I came back home from a grocery trip. I took out the auto gate remote control and pressed it, but nothing happened. I pressed again, and it still didn’t work.

That meant I needed to climb over the gate and press the wall button inside the house to open it. Luckily, my sister was at home.

YouTube Shorts
#

Sign of Battery is dying
#

My remote control has an indicator light. When I press the button, the light normally turns on and stay solid. However, my remote control is blinking now.

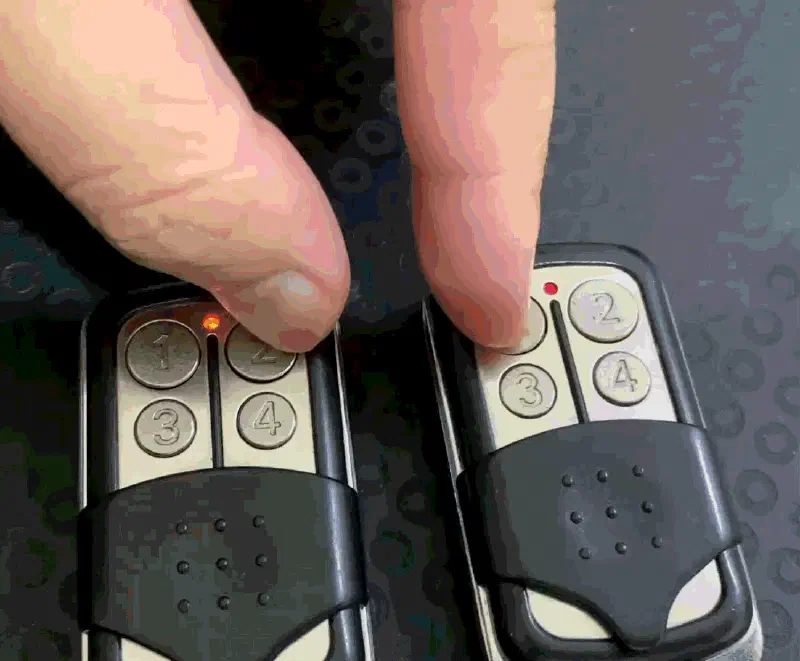

Two remote control in the picture. The right remote control is working, and the indicator light stays solid when I press the button. The left remote control is not working, and the indicator light blinks when I press the button.
The right remote control is working, and the indicator light stays solid when I press the button. The left remote control is not working, and the indicator light blinks when I press the button.

I suspected the battery was failing and unable to provide enough voltage for the remote control to work properly.

Replace the Battery.
#

For my remote control, I needed to remove three screws at the back to access the inside. They are Phillips-head screws, which are very common and easy to find tools for.

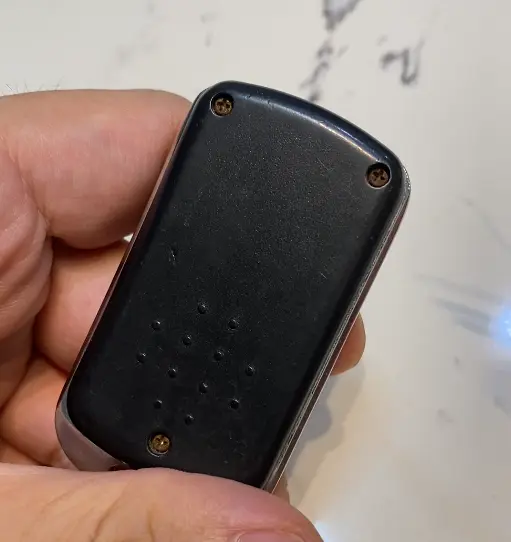

Showing remote control back cover screws
3 screws at the back of the remote control.

The remote control uses an A27/27A battery, which provides 12V. At first, I thought the 27A meant 27 amperes. Wow, that sounds like a very high current. However, A27/27A is just the battery type and does not refer to current.

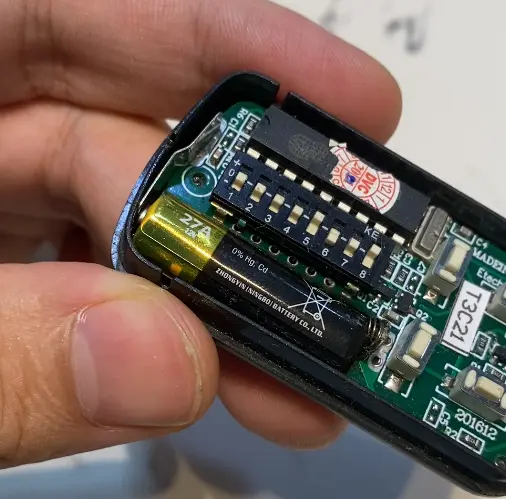

Showing the remote control inside
The battery inside the remote control.

I got my A27/27A battery from a local hardware store, but I believe they are also sold in convenience and grocery stores.

When replacing the battery, make sure the polarity is correct: positive to positive and negative to negative.

Result
#

Put the cover, screws back on and done.

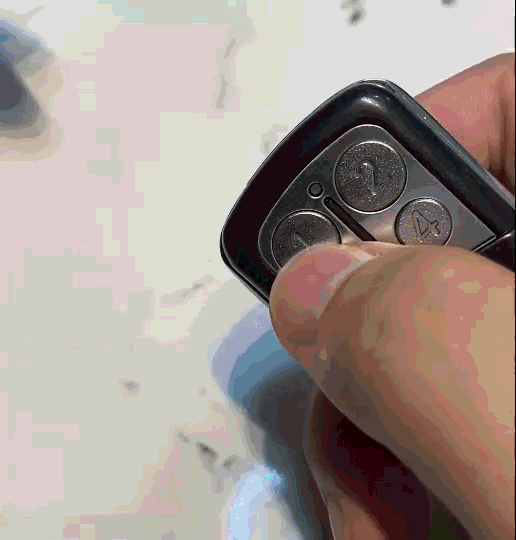

The result after the battery replacement. The remote control indicator light stay solid when pressed.
The remote control is working now.
