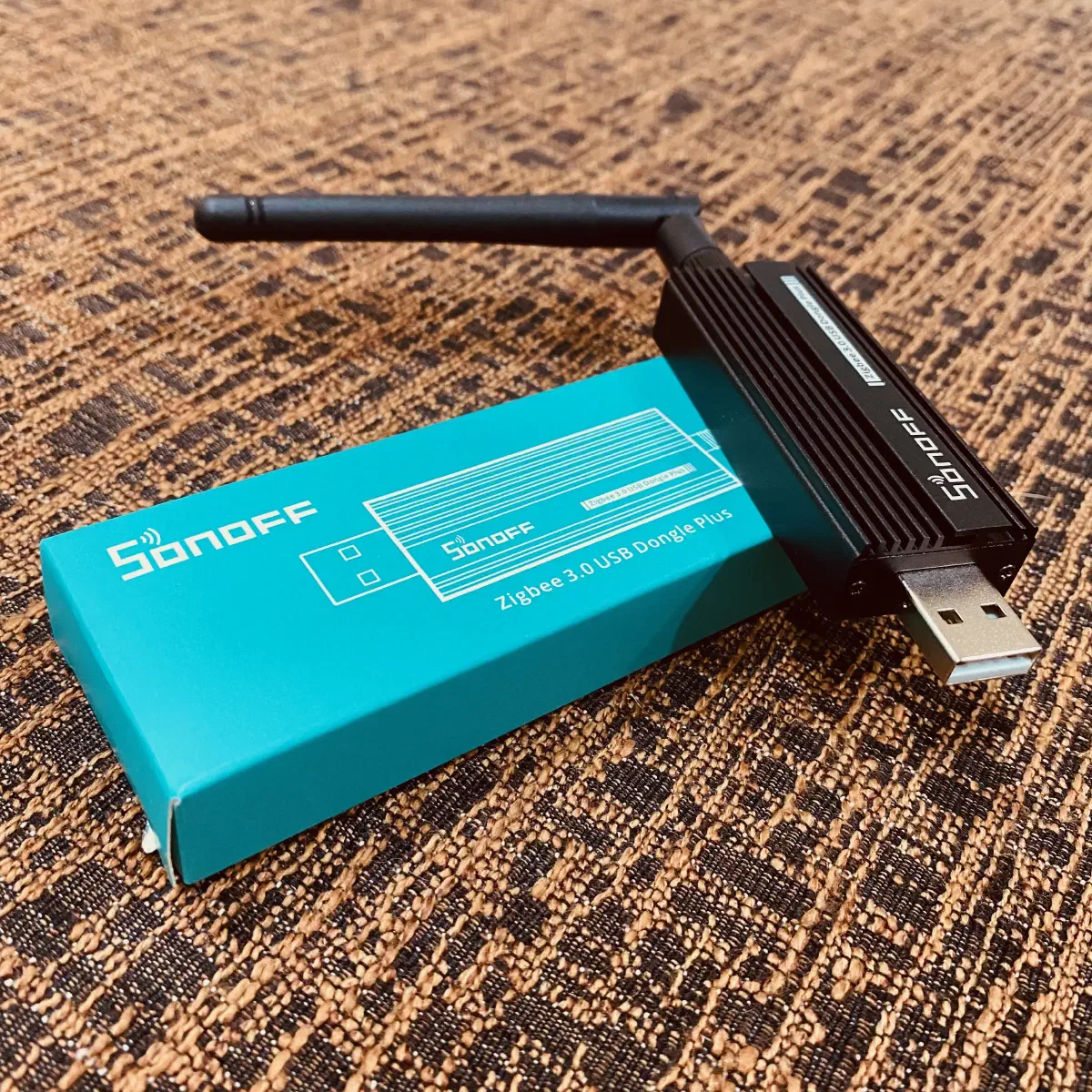

Recently, I bought the SONOFF Zigbee 3.0 USB Dongle Plus-P with a great deal. It was RM 84.95 and dropped to RM 64.84.

At first, I don’t plan to use it. I don’t have a Zigbee device. Somehow, my newly brought SONOFF SwitchMan M5 smart switch has an issue with my outlet’s neutral wire. The ELCB trips immediately after I switch on the outlet’s circuit breaker. To make my life easier, I replace it with a Smaturl Zigbee Smart Switch. Now, I can use it as a Zigbee hub/coordinator and integrate it into Home Assistant.

My Home Assistant runs in Docker container using Docker Compose on Debian, so I will integrate my Zigbee dongle in the Docker Compose way.

Let’s begin.

Video

Plug and Mount Zigbee Dongle into Docker Container

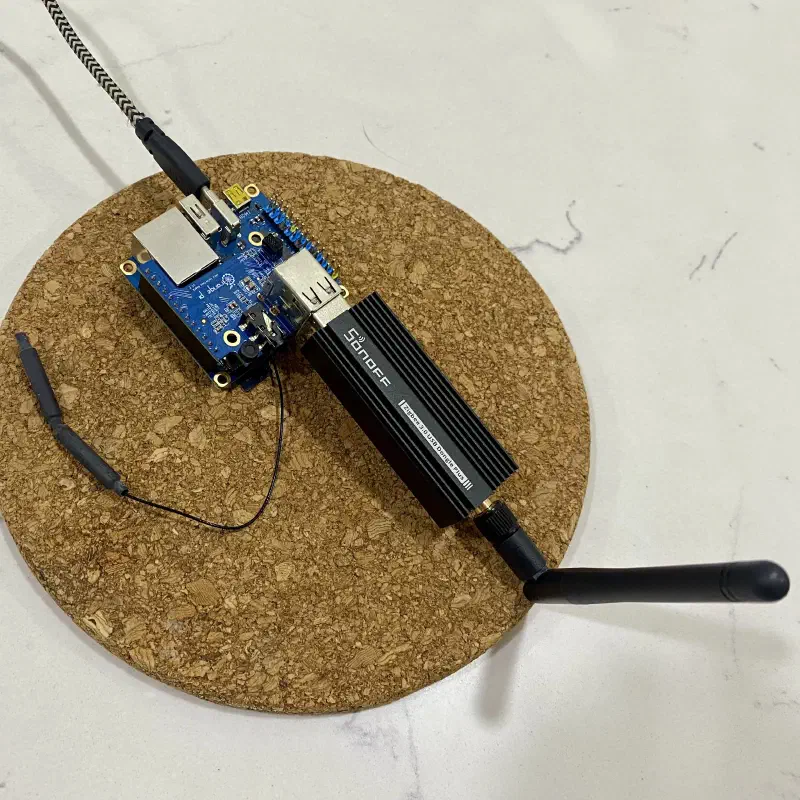

SONOFF Zigbee 3.0 USB Dongle Plus-P plugged into Orange Pi Zero 3 The first step is to plug the SONOFF Zigbee 3.0 USB Dongle Plus-P in the computer.

After, we execute the command in the terminal to find the Zigbee dongle’s device path as below:

$ sudo ls -la /dev/serial/by-id

For my case, we can see that the Zigbee dongle path is /dev/ttyUSB0.

1total 0
2drwxr-xr-x 2 root root 60 Jan 24 09:16 .
3drwxr-xr-x 4 root root 80 Jan 24 09:16 ..
4lrwxrwxrwx 1 root root 13 Jan 24 09:16 usb-ITead_Sonoff_Zigbee_3.0_USB_Dongle_Plus_f0e49294f6bded11bda96c2e38a92db5-if00-port0 -> ../../ttyUSB0

Then, we modify the docker-compose.yaml to mount the /dev/ttyUSB0 into the Docker container as highlighted below:

 1version: "3"
 2services:
 3  homeassistant:
 4    container_name: homeassistant
 5    image: "ghcr.io/home-assistant/home-assistant:stable"
 6    volumes:
 7      - ./config/homeassistant:/config
 8      - /etc/localtime:/etc/localtime:ro
 9      - /run/dbus:/run/dbus:ro
10    devices:
11      - /dev/ttyUSB0:/dev/ttyUSB0
12    restart: unless-stopped
13    privileged: true
14    network_mode: host

We restart the Docker container for changes to take effect.

$ docker compose restart

Just in case, restart doesn’t work. Do a clean restart as command below:

$ docker compose down

$ docker compose up -d

Integrate Zigbee Dongle in Home Assistant

Next, configure the Zigbee dongle in Home Assistant according to below:

  1. Go to Settings.
  2. Click the ADD INTEGRATION button.
  3. Search Zigbee Home Automation and select it twice.
  4. Select the Zigbee dongle’s device path(/dev/ttyUSB0).
  5. Select Create a new network for network formation.
  6. Done

Paring Zigbee devices

Now, we can pair our Zigbee devices according to the manufacturer’s instructions.

For my Smatrul Zigbee Switch, long press any button until the LED indicator light blinks to enter paring mode.

Afterward, we go back to the Home Assistant following below:

  1. Go to Settings.
  2. Click the ADD INTEGRATION button.
  3. Search and select Add Zigbee Device.
  4. Devices should be discovered in the page.

Conclude

The whole integration is more straightforward than I think. Home Assistant already has the integration of ZHA(Zigbee Home Automation) and is compatible with the chips used in SONOFF Zigbee 3.0 USB Dongle Plus-P, making the whole process just a few clicks. The little tricky part is the Zigbee dongle mounting to the Docker container. It needs a little digging for the Zigbee dongle’s device path. That’s it.
